Each chute contains

Intake Section

Specified door installed on unit.

Floor Supports

Angle iron structural frame to support the chute.

Rolling Discharge or Hopper

Door equipped with 165°F fusible link to close door in case of fire.

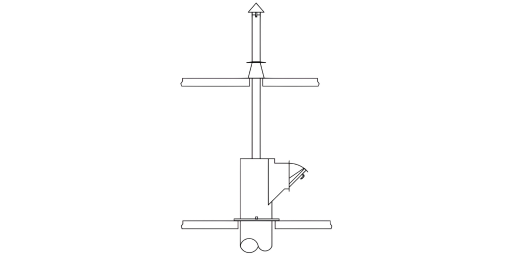

Full Diameter Vent

Aluminum vent (16 ga.) extends four feet above roof level with combination bird-screen/spark arrester, flashing and cap.

Sprinkler and Flush Head

Located at top of chute with additional sprinkler heads at every other floor

Additional items

Sanitizing Units

Access Doors

Electric Interlocks

Heat Sensor

Smoke Detector

Isolator Pads

Sound Coating

ADA Compliant Pneumatic Doors

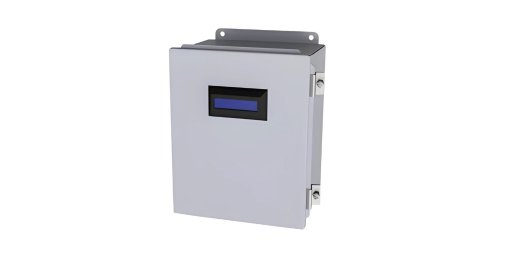

Control Panels

And more…
